BOXER 100 Spoke

I WANT IT!

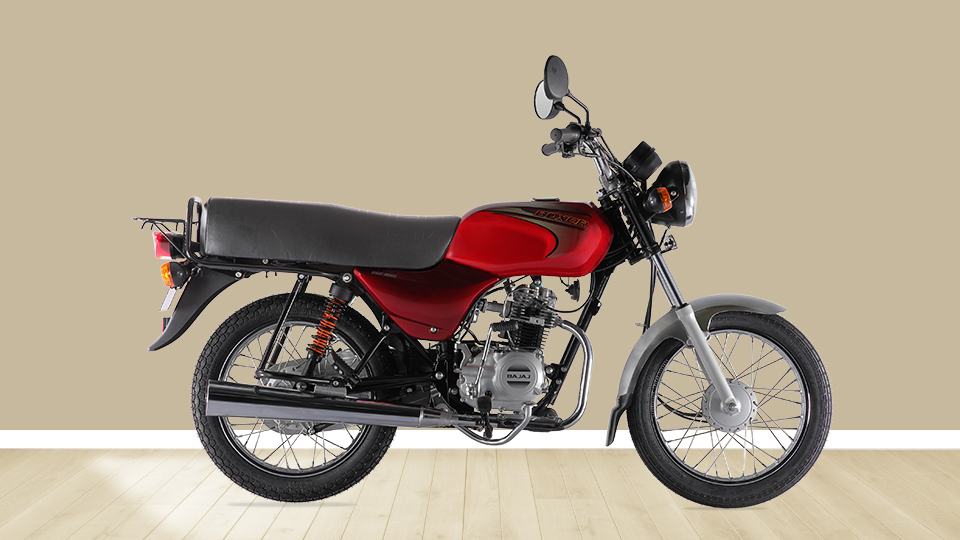

Durability guaranteed

Reliability day-after-day, with the muscle to conquer challenges and performance to cut across boundaries.

Performance at a Glance

0nm

MAX TORQUE

0cc

ENGINE CAPACITY

0ps

ENGINE OUTPUT

FUEL TANK

0kgs

KERB WEIGHT

Click and Drag for 360 View

CHOOSE YOUR COLOUR:
Flame Red

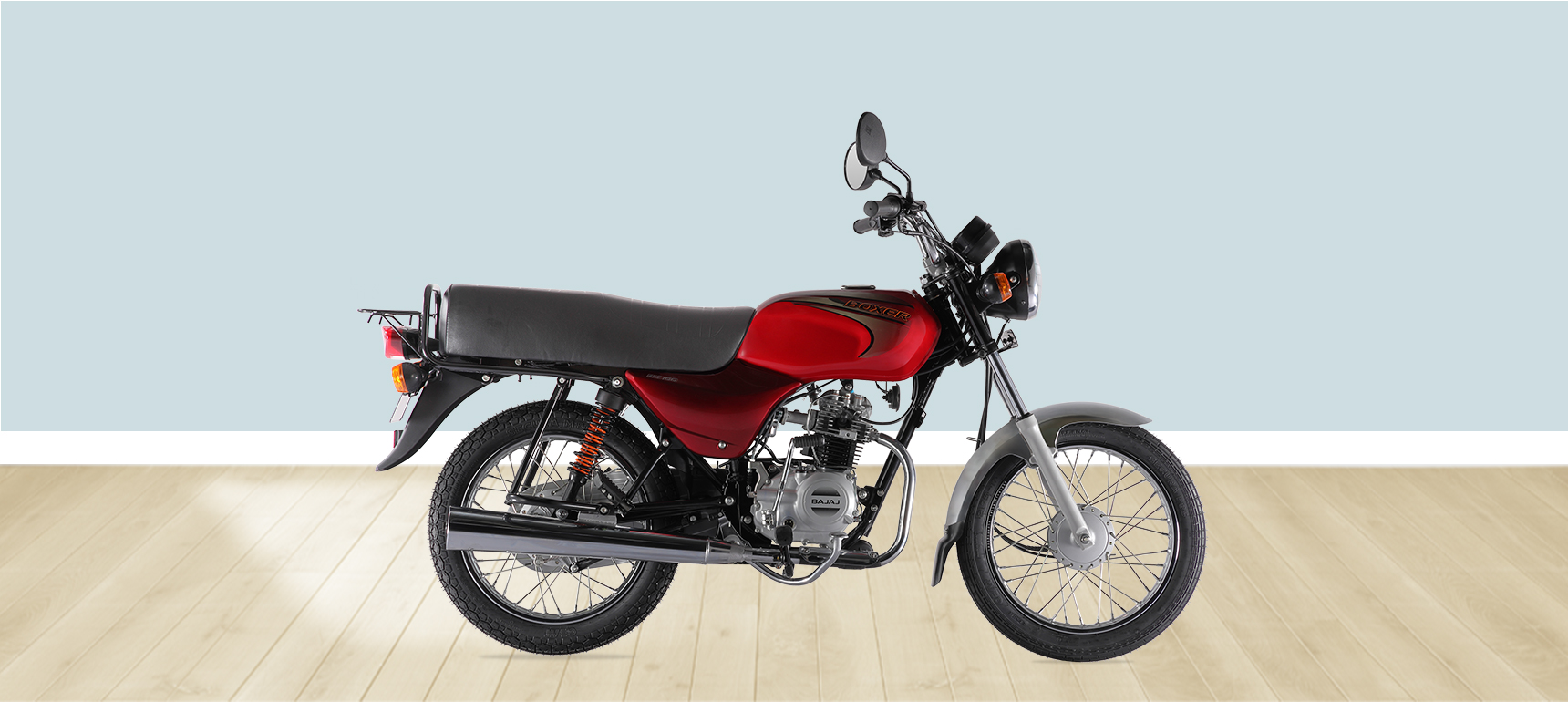

Design and Styling

Design and Styling

With a muscled body, large 17” alloy wheels, a striking headlamp, wider seat and steel grab rail, the Boxer is built to endure stylishly.

WHAT POWERS THE BOXER 100 SPOKE

4-Stroke Natural Air-Cooled Engine

Ride with the promise of best in class fuel efficiency and superior engine performance.

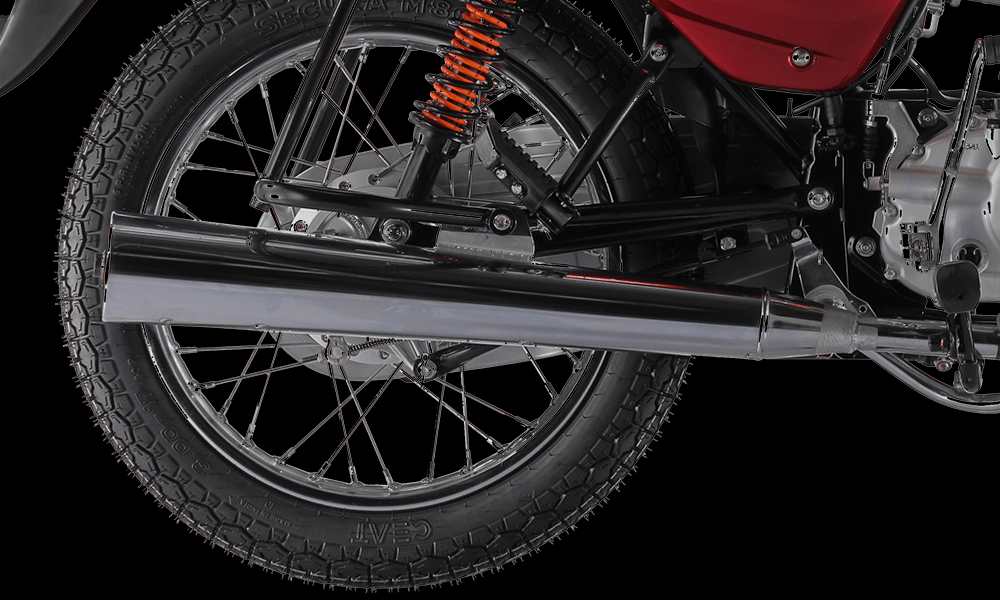

ExhausTEC

Enhanced power at low speeds, for smoother rides on busy city streets.

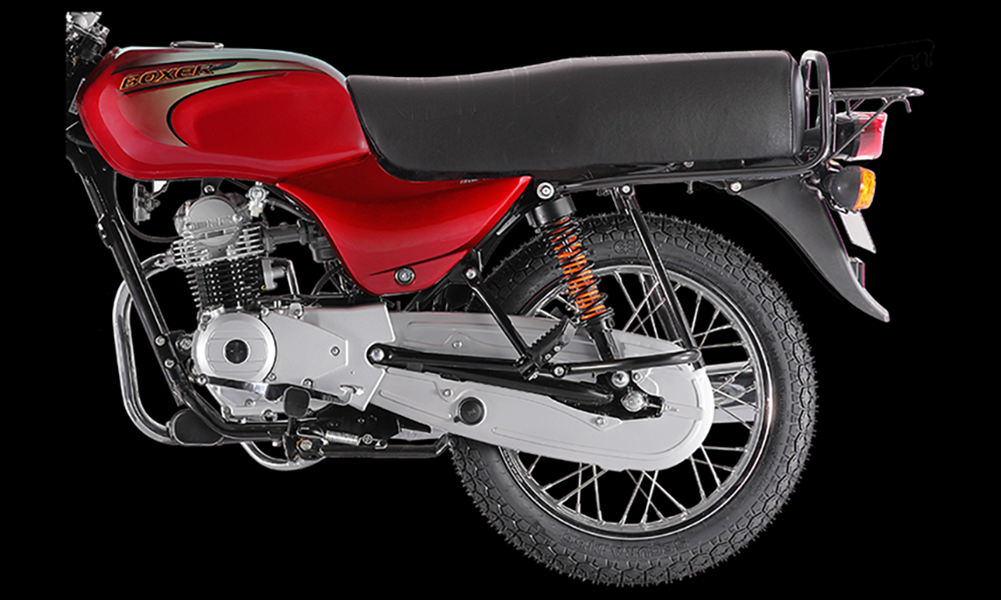

Spoke Wheels

Large 17” spoke wheels, coupled with a long wheel base for excellent stability on uneven paths.

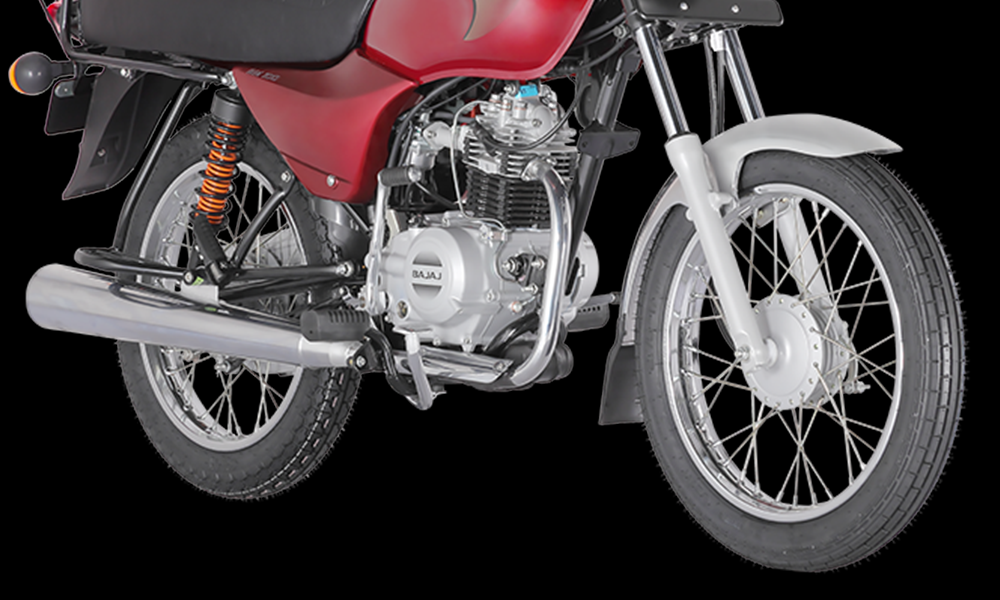

Telescopic Front Fork with SNS Rear Suspension

Front forks and superior SNS rear suspension so you’re comfortable and the highest ground clearance so the engine stays safe over uneven terrain.

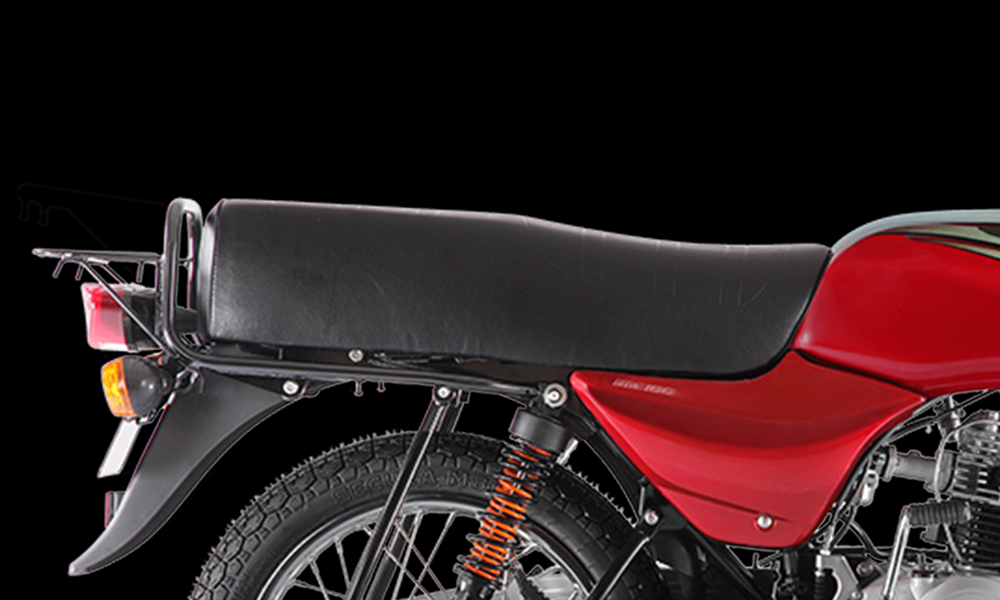

Longer-Wider Seat

An elongated and widened seat to accommodate additional people or goods for even more utility on each ride.

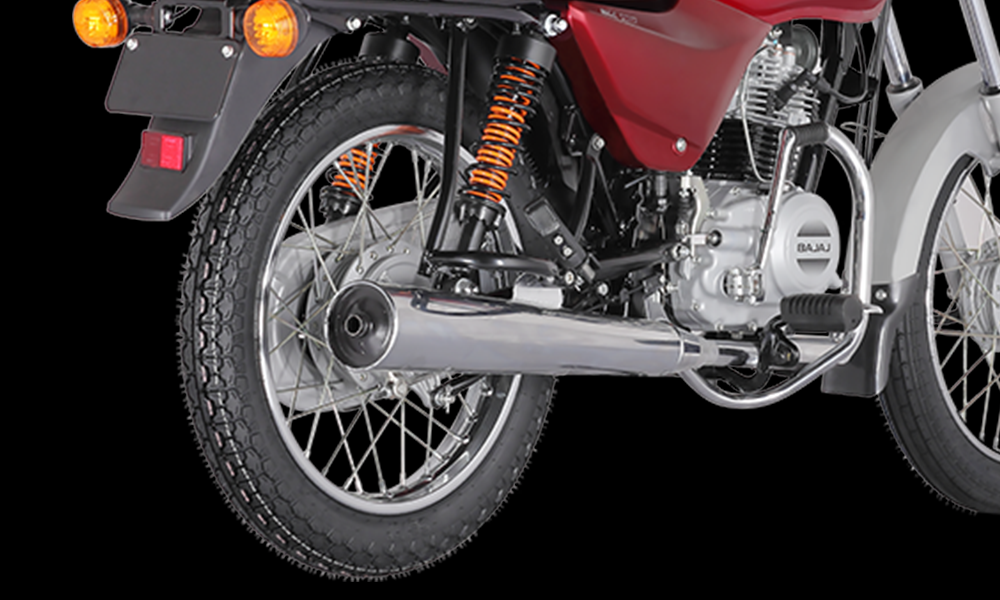

Sports Drum Brakes

Mechanically extending shoe-type and drum brakes lend safety and control in any situation.

Striking 12V Headlamp

Striking 12V headlamp that lights up your route.

THE COMPLETE SPECIFICATIONS

Engine

Type: 4 stroke Natural air cooled
Max Power: 8.2 Ps (6.03 kW) @ 7500 rpm
Max Torque: 8.05 Nm @ 4500 rpm
Displacement: 99.27 cc
Starting:Kick start

Brakes & Tyres

Break Size Front: 110 mm
Brake Size Rear: 130 mm
Tyre Front: 2.75 X 17"
Tyre Rear: 3 X 17"
Brake Type Front: Mechanically Expanding Shoes, Drum
Brake Type Rear: Mechanically Expanding Shoes, Drum

VEHICLE

Wheel Base: 1235mm
Length x Width x Height: 1970 X 770 X 1065 mm
Suspension Front: Ceriani type, Telescopic, Stroke = 110mm
Kerb Weight: 109 Kg
Fuel Tank (Reserve / Usable): 9.3 L ( 1.2L Usable reserve)
Suspension Rear: Trailing arm with coaxial shock absorbers and coil springs

ELECTRICALS

System: 12 Volts AC + DC
Battery: 12V 2.5Ah
Head Lamps: 35/35W
